| Place of Origin: | CN |
| Brand Name: | RF PARTS |
| Model Number: | RF-8085S 8T5B |
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | T/T, Western Union, PayPal |
| Plate Dissipation: | 10KW | Maximum Operation Frequency: | 45MHz |
|---|---|---|---|
| Cooling: | Water | Type: | Water-cooled Triode |

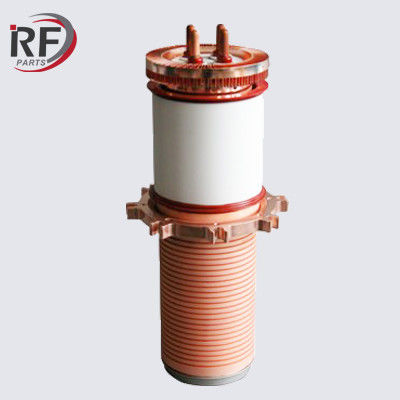

High frequency heating oscillating tube RF-8085S 8T5B Water-cooled triode
The RF-8085S 8T5B electron tube is a cermet structure, a direct thermal helium-tungsten cathode, and water-cooled triode. The maximum operating frequency is 45MHz, the maximum anode dissipation power is 10kW, and the maximum oscillating power of the anode is 12kW. The tube type is mainly used for industrial high-frequency heating and can work under continuous wave and pulsed conditions.
| Filament Voltage | 12V |
| Filament Current | 40A |
| Plate Dissipation | 10kW |
| Maximum operating frequency | 45MHz |
| Cooling | Water |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
| 4CX250B/7203 | 3CX6000A7 | 4CPW1000KA/9009 | 4CX10000J | 3CW2500C7/YU-157 | ML-6425F |
| 4CX250B/M - 7203A | 3CX2500A3 | 4CPW1000KB | 8T85B | 3CW30,000A7 | ML-6426 |
| 4CX250BC/8957 | 3CX1200D7/YU-121 | 4CPW100KA/Y-841 | 4CW10000B | 3CW30,000H7 | ML-6426K |
| 4CX250FG/8621 | 3CX1200Z7/YU-181 | 4CPW300,000A/9008 | 3CX2500H3 | 3CW40,000A5 | ML-6427 |
| 4CX250R/7680W | 3CX15,000A7 | 4CW30,000B | 3CX4500F3/YU-108 | 3CW40,000A7 | ML-7480A |
| 4CX3000A/8169 | 3CX1500A7/8877 | 4CX5,000R/8170W | 3CX5000A3 | 3CW5000A7 | ML-7482 |
| 4CX300A/8167 | 3CX20,000A7 | 5CX1500B | 3CX5000H3 | 3CW5000H7 | ML-7560 |
The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
